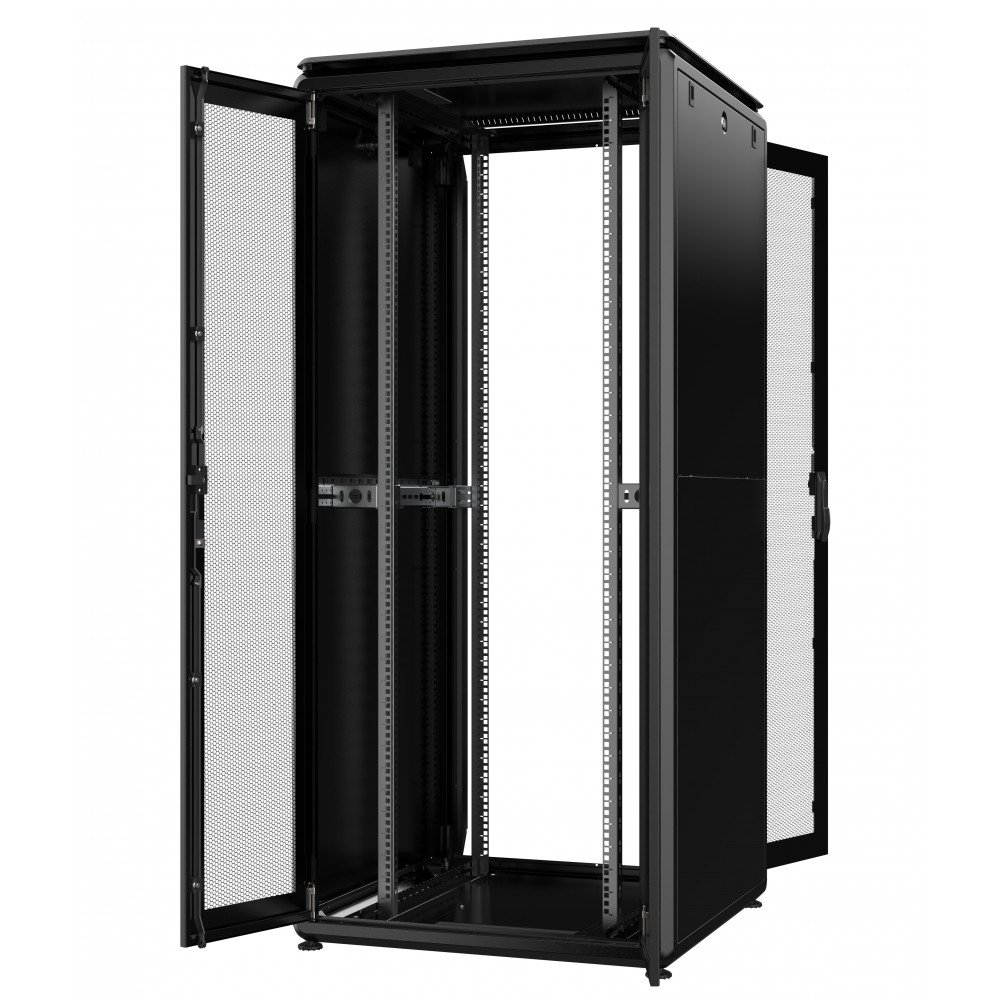

42U 800 × 1000 Network Cabinet — Mesh Door

The 42U 800 × 1000 Network Cabinet with Mesh Doors is a professional 19-inch floor-standing server rack designed for large-scale networking, server, CCTV, telecom, and data-center infrastructure. With 42U of rack space, 800 mm width, and 1000 mm depth, it provides generous room for rack servers, switches, storage systems, UPS units, PDUs, and structured cabling. The perforated mesh doors promote airflow, making the cabinet particularly suitable for heat-generating equipment.

Key Features

• 42U Rack Capacity
• Standard 19-inch Rack Mounting
• 800 mm Width × 1000 mm Depth
• Floor-Standing Design
• Perforated Mesh Front Door
• Perforated Mesh Rear Door
• Lockable Front & Rear Doors
• Removable Side Panels
• Adjustable Front & Rear 19-inch Mounting Rails
• Vertical Cable Management
• Top & Bottom Cable Entry
• Excellent Passive Airflow & Ventilation
• Fan Mounting Provision
• Grounding Provision
• Durable Cold-Rolled Steel Construction
• Powder-Coated Finish
• Castors with Brakes & Adjustable Leveling Feet
• Up to 800–1000 kg Static Load Capacity, depending on configuration
• IP20 Protection
• Suitable for deep server and network equipment

Ideal For

• Rack Servers
• Network Switches
• Patch Panels
• Routers & Firewalls
• Storage & NAS Systems
• Rack-Mount UPS Systems
• CCTV DVR/NVR Equipment
• Fiber & Telecom Equipment
• PDUs
• Structured Cabling
• Server Rooms
• Data Centers

The 42U 800 × 1000 Network Cabinet with Mesh Door provides a secure, spacious, and highly ventilated rack solution for demanding IT environments. Its 1000 mm depth accommodates deeper server hardware, while the 800 mm width provides additional space for vertical cable management. The mesh front and rear doors improve airflow around high-density equipment, helping support efficient cooling.
