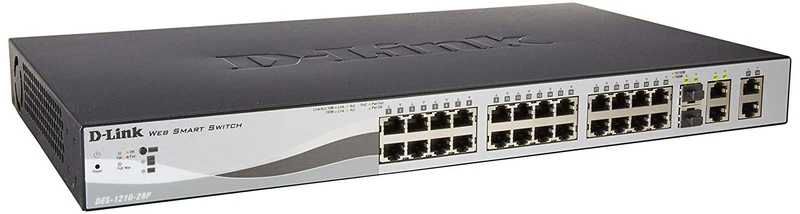

D-Link DGS-1210-28P 24-Port Gigabit PoE+ Smart Managed Switch

The D-Link DGS-1210-28P is a 28-port Gigabit Smart Managed PoE+ switch designed for IP surveillance, wireless access points, VoIP phones, and business networks. It provides 24 Gigabit PoE+ RJ45 ports and 4 Gigabit RJ45/SFP combo ports.

Key Features

• 24 × 10/100/1000 Mbps Gigabit PoE+ ports
• 4 × Gigabit RJ45/SFP Combo ports
• IEEE 802.3af/at PoE+
• PoE on ports 1–24
• Up to 30W per PoE port
• 193W total PoE budget
• 56 Gbps switching capacity
• 41.7 Mpps forwarding rate
• 8K MAC address table
• L2+ Static Routing
• VLAN support
• 802.1Q VLAN
• Voice VLAN
• QoS / 802.1p
• IGMP Snooping
• Link Aggregation / LACP
• STP / RSTP / MSTP
• Port Mirroring
• 802.1X authentication
• Access Control Lists (ACL)
• DHCP Snooping
• IP-MAC-Port Binding
• PoE scheduling
• Remote PoE power cycling
• PoE Watchdog
• Web-based Smart Management
• SNMP support
• Standard & Surveillance management interfaces
• 19-inch rack-mountable
• Dimensions: approximately 440 × 210 × 44 mm depending on revision
• Operating temperature: -5°C to 50°C

Ideal For

• CCTV / IP Camera Networks
• Wi-Fi Access Points
• VoIP Phones
• Offices & Businesses
• Hotels & Hospitality
• Schools & Campuses
• Retail Stores
• Warehouses
• Network Cabinets
• Small & Medium Enterprise Networks

The DGS-1210-28P is particularly suitable for deployments requiring 24 Gigabit PoE+ ports, fiber-capable combo uplinks, advanced Layer 2 management, and L2+ static routing. The 193W PoE budget makes it well suited for powering multiple IP cameras, access points, or VoIP phones from a single switch.

Important: The 28P has 24 dedicated Gigabit PoE+ ports + 4 combo Gigabit RJ45/SFP ports. The four combo ports are intended for uplink/flexible connectivity and are not additional PoE ports.
