Ubiquiti UniFi U7 Outdoor Access Point

The Ubiquiti UniFi U7 Outdoor is an all-weather WiFi 7 access point designed for outdoor campuses, warehouses, hospitality areas, public spaces, large properties, and other demanding wireless deployments. It features 4 spatial streams, a 2.5 GbE uplink, and an integrated directional super antenna for extended-range coverage.

Key Features

• WiFi 7 (802.11be)
• Dual-Band 2.4 GHz & 5 GHz
• 4 Spatial Streams
• 2×2 MU-MIMO on 2.4 GHz & 5 GHz
• Up to 4.3 Gbps on 5 GHz
• Up to 688 Mbps on 2.4 GHz
• 2.5 GbE RJ45 Uplink
• PoE+ Powered
• Coverage up to 5,000 sq. ft. / 465 m² with directional antenna
• Up to 1,750 sq. ft. / 160 m² with omnidirectional antennas
• Supports 250+ connected clients
• IPX6 Weatherproofing
• Integrated Directional Super Antenna

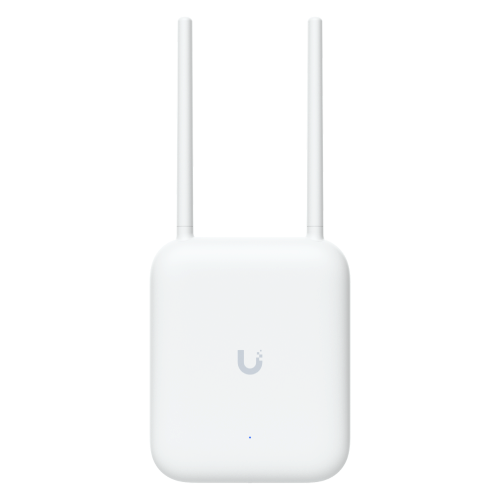

• External Omnidirectional Antenna Support
• 5 GHz antenna gain up to 12.5 dBi directional
• 2.4 GHz antenna gain up to 8 dBi directional
• Wireless Meshing
• Band Steering
• 802.11k/v/r Fast Roaming
• Guest Network Isolation
• VLAN & Dynamic RADIUS VLAN Support
• Captive Portal / Hotspot
• Client Device Isolation
• WiFi Speed Limiting
• Passpoint / Hotspot 2.0
• UniFi Network Centralized Management

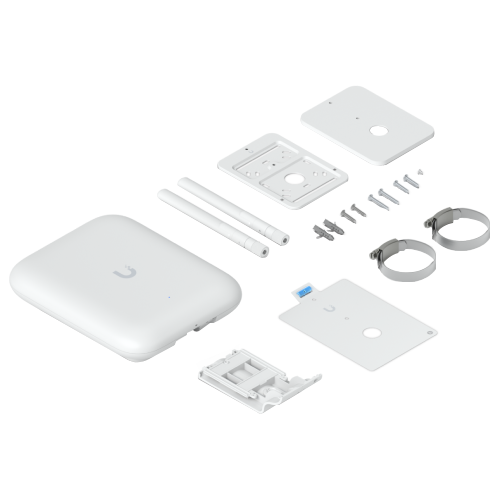

• Wall & Pole Mounting
• Maximum Power Consumption: 19W
• Operating Temperature: -30°C to 60°C

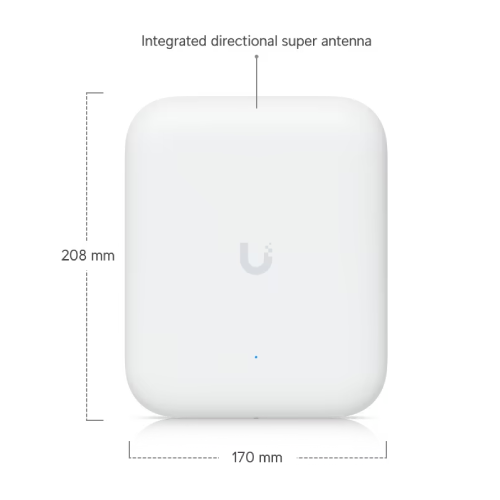

• Dimensions: 170 × 208 × 54.5 mm
• Weight: 1.2 kg

Ideal For

• Outdoor WiFi Networks
• Corporate Campuses
• Hotels & Resorts
• Warehouses
• Schools & Universities
• Restaurants & Outdoor Dining Areas
• Parks & Public Spaces
• Large Residential Properties
• CCTV / IoT Network Connectivity
• Outdoor Events & Venues

The UniFi U7 Outdoor provides high-speed WiFi 7, long-range directional coverage, 2.5 GbE connectivity, IPX6 weather protection, and flexible antenna options, making it well suited for extending high-performance UniFi wireless networks into outdoor environments.

Note: The standard U7 Outdoor is a dual-band 2.4/5 GHz model and does not have 6 GHz. If 6 GHz is required outdoors, the U7 Pro Outdoor is the newer option with extended-range AFC 6 GHz support.
