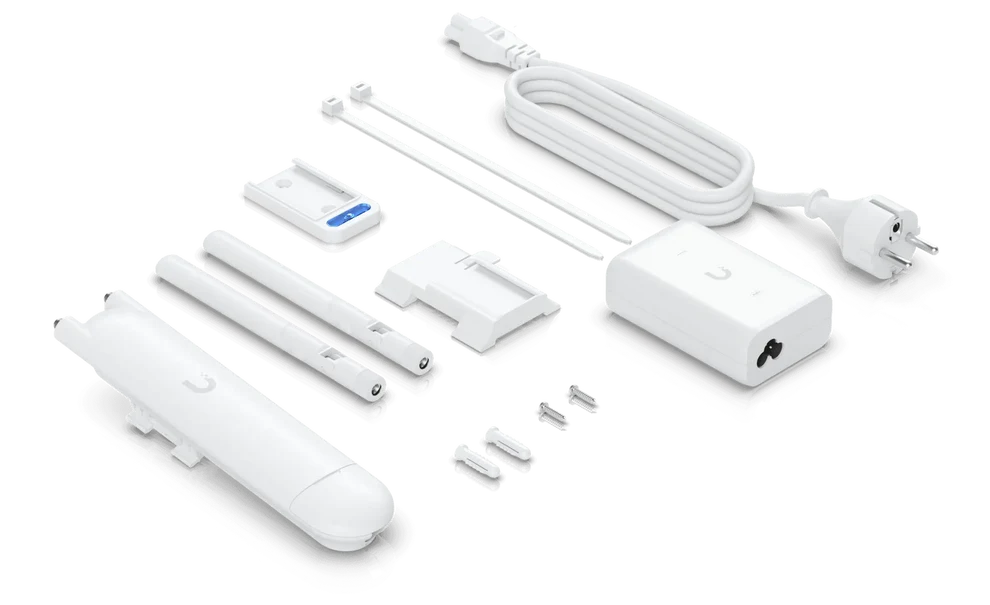

Ubiquiti UniFi UAP-AC-M Indoor/Outdoor Access Point

The Ubiquiti UniFi UAP-AC-M (AC Mesh) is a compact WiFi 5 802.11ac dual-band access point designed for both indoor and outdoor deployments. It supports 2×2 MIMO, external antenna options, and up to 867 Mbps on 5 GHz, making it suitable for extending wireless coverage across homes, offices, campuses, warehouses, and outdoor areas.

Key Features

• WiFi 5 (802.11ac)
• Dual-Band 2.4 GHz & 5 GHz
• 2×2 MIMO
• Up to 300 Mbps on 2.4 GHz
• Up to 867 Mbps on 5 GHz
• 1 × Gigabit Ethernet port
• 2 × External Dual-Band Omni Antennas
• Antenna Gain: 3 dBi (2.4 GHz) / 4 dBi (5 GHz)
• 2 × RP-SMA antenna connectors
• Optional external antenna support for directional coverage
• Wireless Meshing
• Up to 250+ concurrent clients
• 24V Passive PoE / 802.3af PoE
• Maximum Power Consumption: 8.5W
• Wall, Pole & Fast-Mount installation
• UniFi Network centralized management
• VLAN 802.1Q support
• Per-user bandwidth limiting
• Guest traffic isolation
• WPA/WPA2 Enterprise security
• Operating Temperature: -30°C to 70°C
• Dimensions: 353 × 46 × 34.4 mm
• Weight: Approx. 152g with antennas

Ideal For

• Outdoor WiFi Coverage
• Offices & Businesses
• Homes & Villas
• Hotels & Resorts
• Warehouses
• Schools & Campuses
• Restaurants & Outdoor Areas
• Wireless Mesh Networks
• Large Property WiFi Extensions

The UniFi UAP-AC-M combines dual-band WiFi 5, compact outdoor-ready construction, external antenna flexibility, Gigabit Ethernet, PoE power, and UniFi centralized management, making it a versatile solution for extending wireless coverage indoors or outdoors. Ubiquiti currently describes it as a compact indoor/outdoor WiFi 5 AP with optional external antenna support.

Note: The UAP-AC-M is an older WiFi 5 model. For a new deployment requiring higher throughput, newer UniFi WiFi 6/7 outdoor models such as the U6 Mesh or U7 Outdoor are generally better choices.
